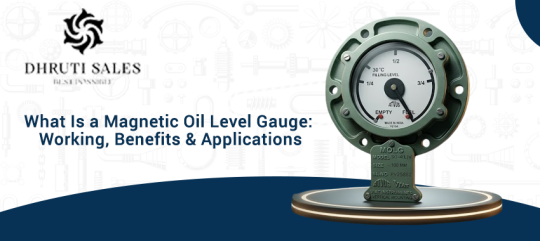

What Is a Magnetic Oil Level Gauge?
A Magnetic Oil Level Gauge is one of the most important devices for monitoring oil levels in oil-filled transformers, conservators, and other equipment. This device serves as a visual indicator of the oil level. Therefore, there is no need for any oil contact.
Correct maintenance of oil level in the transformer is also important, as transformer oil helps both in insulation and cooling of the device. If the oil level becomes too low, the insulation will be compromised, which can lead to excessive heating.
The industries that depend on uninterrupted power supply will benefit from investing in a high-quality Magnetic Oil Level Gauge in order to get reliable transformers and avoid maintenance issues.
How Does a Magnetic Oil Level Gauge Work?
A Magnetic Oil Level Gauge operates on the basis of magnetic coupling of a float within the conservator tank and an external indicator.
The way it works is quite simple:
Float rises and falls according to a transformer oil level.
The float has a permanent magnet in it.
The magnet rotates and the movement is transferred to the external pointer or dial through magnetic coupling.
This way oil level changes cause the pointer to display the level on the dial, and there is no physical connection between the moving parts of the tank and the pointer.
Such a design rules out any risk of leakage or non-reliable operation while allowing for continuous oil level indication.
Today a lot of gauges are also equipped with alarm contacts so that operators know when the oil level is dangerously low or high, enabling them to take preventive measures before any serious problems arise.
Advantages of Magnetic Oil Level Gauge
The Magnetic Oil Level Gauge gives the operator the possibility of constant and reliable oil level reading.
Better Safety for the Transformer
If you have the correct oil level, then the risk of overheating, insulation damage, and transformer failure is minimized.
Minimal Maintenance
No Leakage
Trustworthy Performance
Fosters Preventive Maintenance
Applications of Magnetic Oil Level Gauges
Magnetic Oil Level Gauges have broad use in industries where monitoring of transformer oil is a necessity.
Among the uses of Magnetic Oil Level Gauges are:
Power transformers
Distribution transformers
Industrial transformers
Electrical substations
Renewable energy facilities
Production plants
Utility companies
Heavy engineering fields
Wherever transformer oil is important for the functioning of equipment, a good oil level monitoring tool is crucial.
Why Oil Level Monitoring Is so Important
Transformer oil serves two primary functions:
Cool the transformer parts
Provide electricity insulation
Should the oil level drop, the transformer will suffer from overheating, insulation ability impairments and greater danger of operation.
Effectively working Magnetic Oil Level Gauge will enable the personnel to discover these problems promptly and take remedies before the equipment suffers damage.
This type of monitoring is very important for the efficiency of the equipment and less downtime.
Key Features to Look for in a Magnetic Oil Level Gauge
When selecting a Magnetic Oil Level Gauge, consider features such as:
Precision accuracy in measurement
An efficient, durable, and resilient construction
Simplicity and legibility of dials
A weather-resistant structure
Long life in operation
Reliable magnetic coupling
Alarm system-compatible product
Easy installation
Easy maintenance system
Finding the right level gauge plays a crucial role in operations efficiency as well as reliability of equipment.
Finding the right Magnetic Oil Level Gauge
Yet, not every transformer operates under the same conditions. There are different aspects to pay attention to when looking for a Magnetic Oil Level Gauge, such as the following:
Selecting a Magnetic Oil Level Gauge, which is compatible with the specifications of your transformer will provide you with accurate readings of the oil level.
Why Dhruti Sales?
When choosing a supplier of transformer accessory equipment, make sure that the supplier is reliable and provides high-quality products. Dhruti Sales offers transformer spare parts that meet the industrial standards and help to run transformers efficiently.
Not only does the company supply Magnetic Oil Level Gauge models, but it also offers an extensive lineup of transformer accessories including transformer bushings, pressure relief devices, Buchholz relays, silica gel breathers, valves, gauges, and other important transformer elements. Thus, it can provide its customers with the required accessories at one place.
Dhruti Sales focuses on the quality, reliability of its products, as well as a customer-oriented approach.
Frequently Asked Questions
What is intended by the term “Magnetic Oil Level Gauge”?
A Magnetic Oil Level Gauge is an accessory of a transformer which is used for indicating oil level in a conservator tank by virtue of magnetic coupling existent between the internal float and external indicator.
What are the working principles of the Magnetic Oil Level Gauge?
A magnetic float is placed inside the gauge and it rises or descends with oil level. The action is caused by magnetic force enabling external indicators to show the oil level without direct contact.
Why is it important to use a Magnetic Oil Level Gauge?
The gauge allows one to keep track of transformer oil level, therefore preventing overheating, maintaining transformer safety and prolonging life span.
What are the places where one may need to use a Magnetic Oil Level Gauge?
It is common to find the gauge being used in power transformers, distribution transformers, industrial transformers, substations, and other electrical devices that utilize oil.
After how long one may inspect Magnetic Oil Level Gauges?
Inspection of the gauge has to be done regularly while executing transformer preventive maintenance in order to ensure its proper work and remove any abnormalities in the readings.
Conclusion
Whether in use in power plants, production facilities, renewable energy projects, or with great industrial equipment, acquiring a premium quality Magnetic Oil Level Gauge is beneficial for sustaining long-term efficiency and saving on maintenance costs.
Should you need transformer accessories that can be counted on, turn to Dhruti Sales and choose from its products suitable for a variety of industrial purposes that are meant to guarantee the working and safety of oil-filled transformers.
